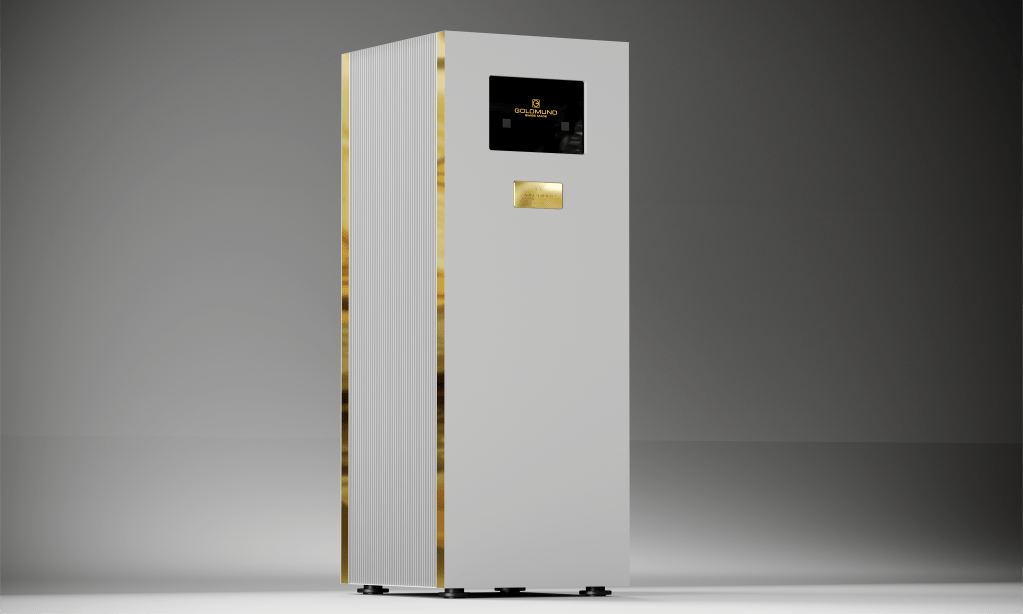

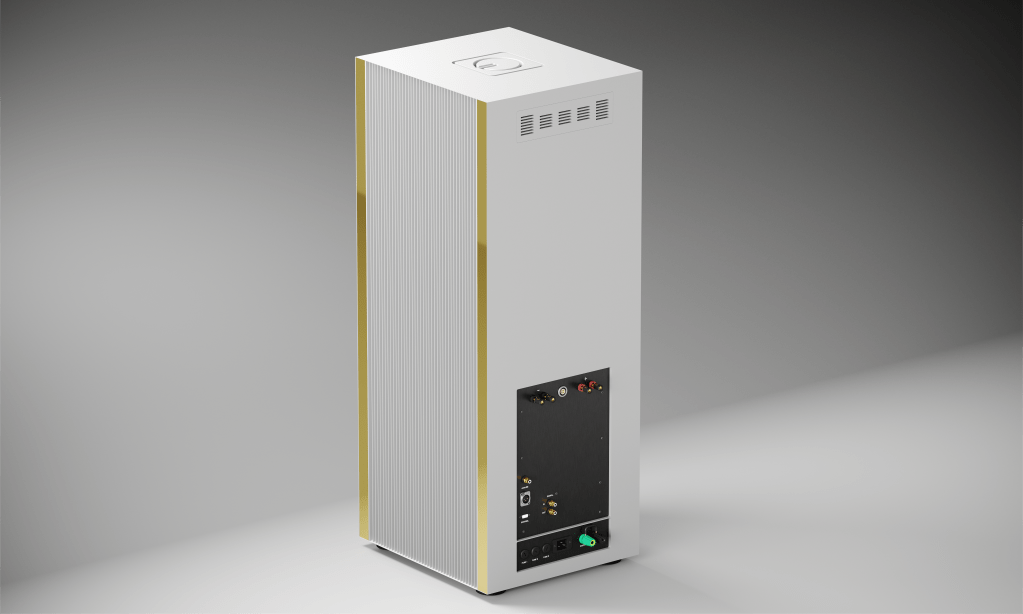

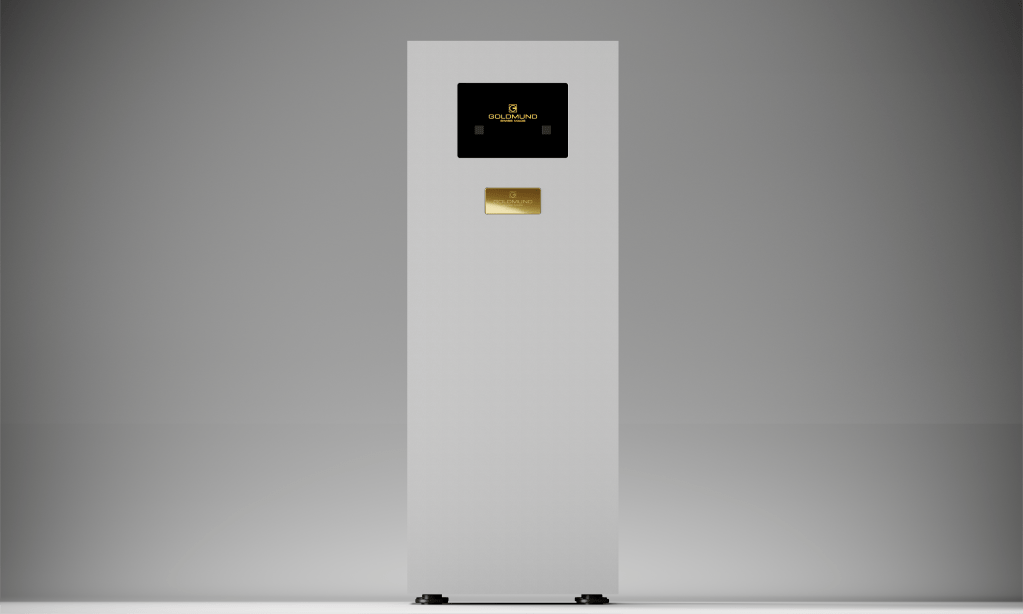

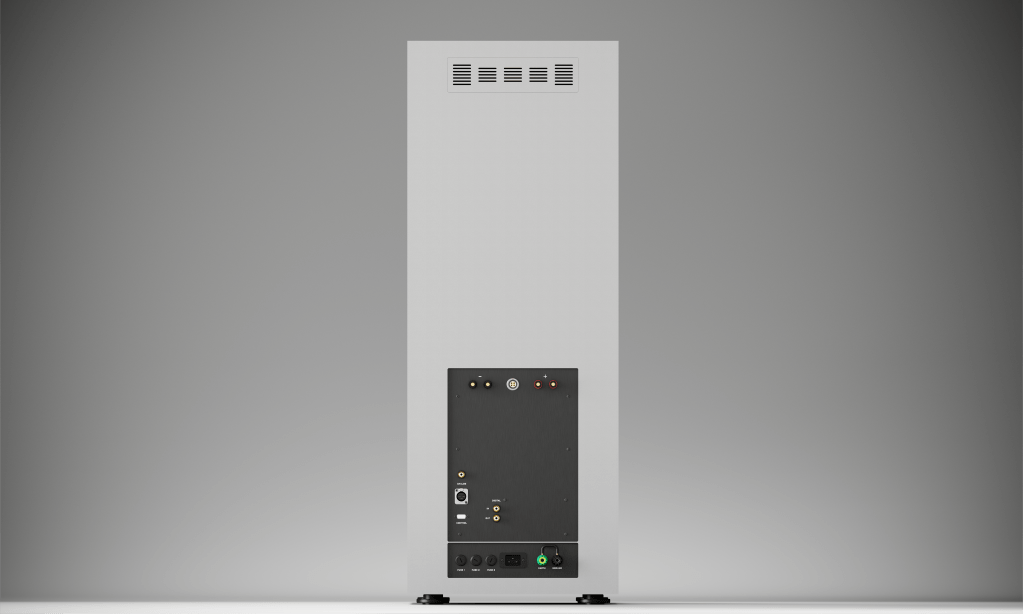

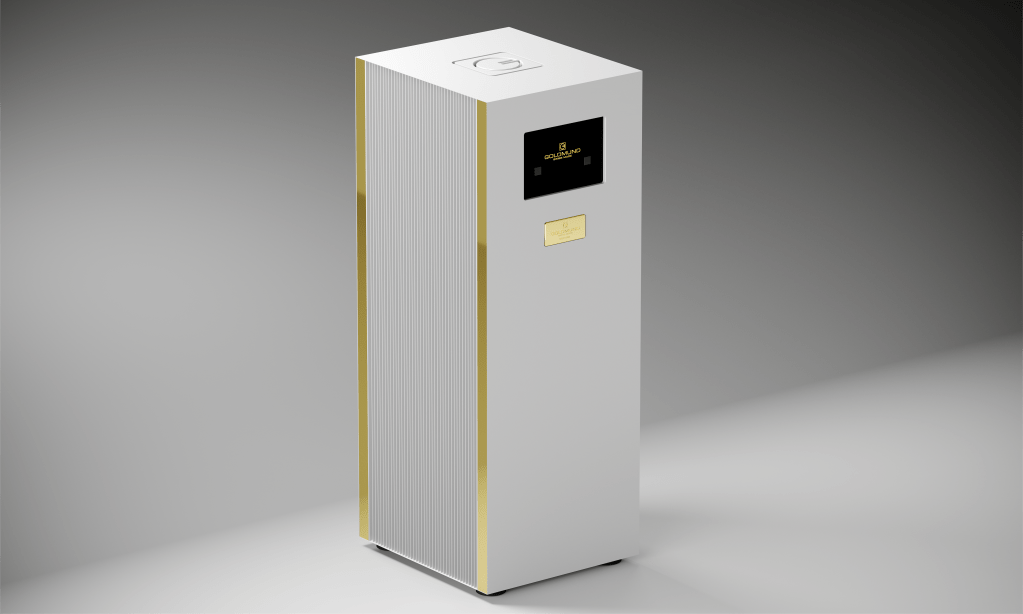

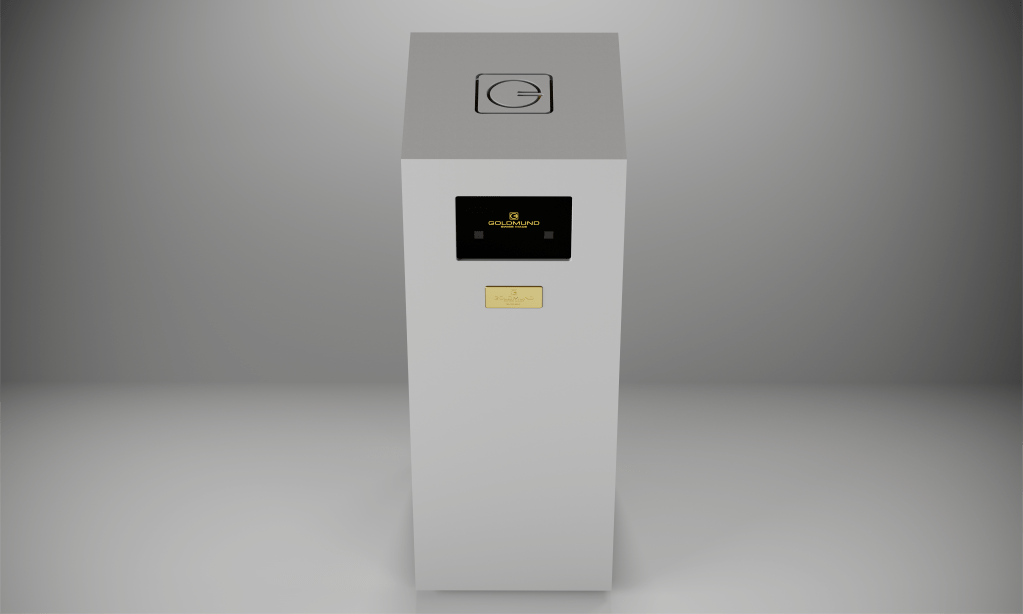

TELOS 8800 MONO POWER AMPLIFIER

OUTPUT POWER

Maximum power (IEC60065): 1400 Wrms on 8 Ω / 1 % THD

OUTPUT FLOOR NOISE

Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz

OUTPUT

Max level before clipping 1 % THD, unloaded: 300 Vpp

DAMPING FACTOR

600 at 1 kHz / 8 Ω

GAIN

35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input)

POWER SUPPLY

Nominal line voltage: 115 V or 230 V Input voltage range: +/- 5 %

DISTORTION

IMD (SMPTE), unloaded: < 0.01 % THD+N, unloaded: < 0.005 % from 20 Hz to 20 kHz at 30 Vrms output

INPUT

Max level before clipping Analog input: 2 Vrms Digital input: 0 dBFS

RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 750 W

DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 117 dB

TOTAL SIZE & WEIGHT PER UNIT

42 W x 113 H x 47 D (cm) 265 kg per unit

COLOUR

Black | Silver Grey

Telos 8800 單聲道擴大機是世界上最強大的擴大機之一，具有 4 個獨立的電子板，可最大限度地提高系統穩定性。 Telos 8800 樹立了新的性能標準，具有無與倫比的性能和革命性的創新，重新定義了聆聽體驗。這款最新擴大機採用銀金屬化 MKP 聚丙烯薄膜電容器，為 Mosfet 輸出級提供異常穩定的電源，即使在要求嚴苛的 1 Ω 負載下也能保證最佳穩定性。
